Design flexibility developed to be suitable for a wide variety of small devices.
Power Disc developed by Routejade for the first time in the world
has been recognized its excellent quality by many customers.

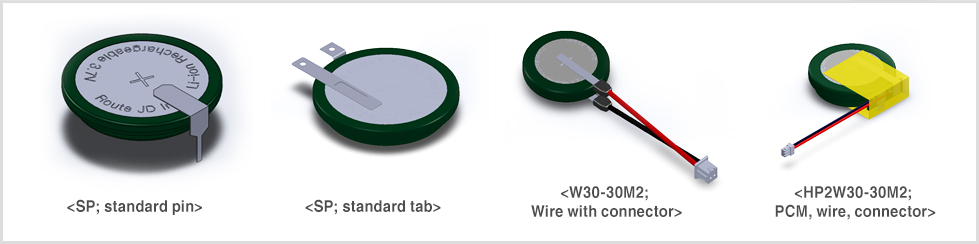

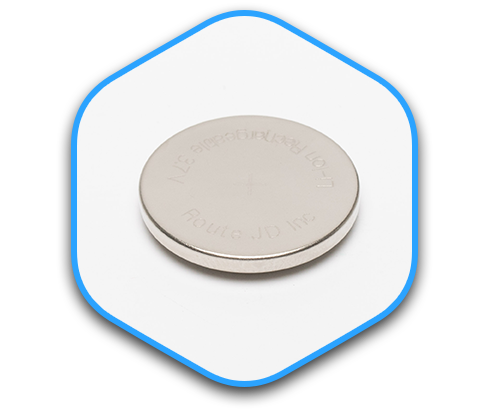

Power Disk
Routejade's rechargeable coin cell has superial capacity about 21% than competitors and high energy density over 300Wh/L.
It has been applied to any wearable devices like GPS watch/Smart watch and smart shoes because of the strength in shock and safety.
| Model | Capacity (mAh) |
Voltage (V) |
Weight /Max. |
Dimension(mm) | |
|---|---|---|---|---|---|
| Diameter | Thickness | ||||
| PD2032C1 | 85 | 3.7 | 3.4g | 20.1 | 3.5 |
| PD2048 | 120 | 3.7 | 4.2g | 20.1 | 5.0 |
| PD2430C1 | 110 | 3.7 | 4.5g | 24.5 | 3.2 |
| PD2440 | 150 | 3.7 | 5.6g | 24.5 | 4.4 |
| PD2450 | 200 | 3.7 | 6.6g | 24.5 | 5.4 |
| PD3032 | 200 | 3.7 | 7.3g | 30.0 | 3.5 |
| PD3048 | 300 | 3.7 | 9.3g | 30.0 | 4.9 |
Routejade’s pouch cell series with design flexibility are developed
to be suitable for various small devices and it's applicable to any devices.

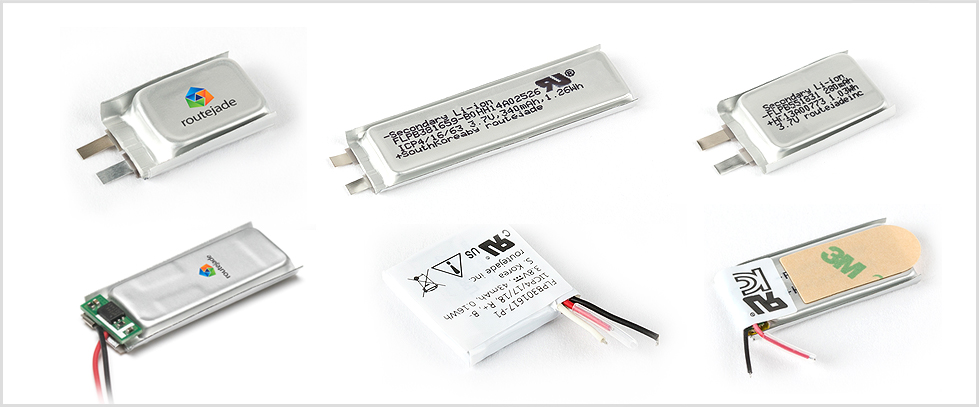

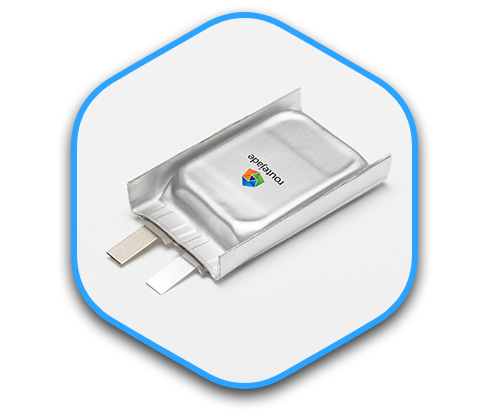

Flexible Lithium-ion Polymer Battery
As the energy solution for tiny sized IT/Mobile devices, FLPB series are developed to be suitable for a various devices like headset, HMD, Activity tracker and it's applicable to diverse wearable applications.
| Model | Capacity (mAh) |
Voltage (V) |
Weight /Max. |
Dimensions(mm) | ||
|---|---|---|---|---|---|---|
| T | W | L | ||||
| FLPB301220 | 48 | 3.7 | 1.2g | 3.0 | 12.8 | 20.0 |
| FLPB381220 | 68 | 3.7 | 1.6g | 3.8 | 13.0 | 20.0 |
| FLPB501220 | 85 | 3.7 | 2.0g | 4.8 | 13.0 | 20.0 |
| FLPB231723 | 95 | 3.87 | 1.8g | 2.1 | 17.5 | 24.4 |
| FLPB301031 | 76 | 3.8 | 1.8g | 3.0 | 10.2 | 29.1 |
| FLPB251630 | 100 | 3.8 | 2.1g | 2.6 | 16.7 | 29.1 |
| FLPB352030 | 200 | 3.8 | 3.7g | 3.2 | 20.2 | 29.4 |
| FLPB462536 | 450 | 3.8 | 8.0g | 4.4 | 25.5 | 35.1 |
| FLPB551831 | 300 | 3.7 | 6.0g | 5.2 | 20.0 | 31.5 |

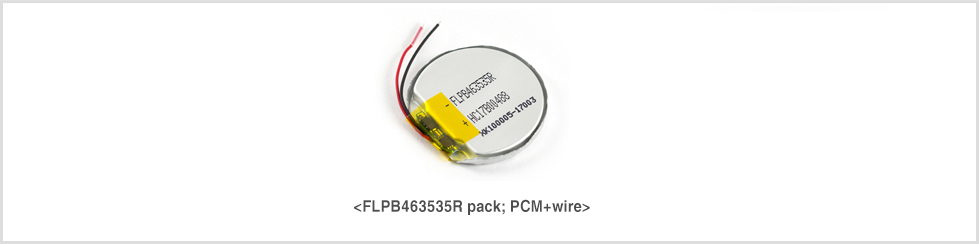

Round type pouch cell
| Model | Capacity (mAh) |
Voltage (V) |
Weight /Max. |
Dimensions(mm) | ||
|---|---|---|---|---|---|---|
| T | W | L | ||||
| FLPB302828R | 190 | 3.87 | 2.9g | 2.9 | 27.9 | 24.0 |
| FLPB493535R | 500 | 3.8 | 9.0g | 4.6 | 35.0 | 35.0 |

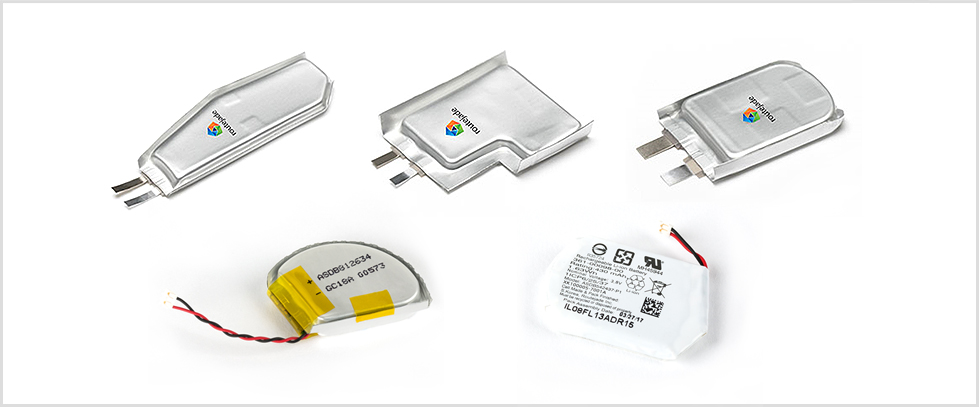

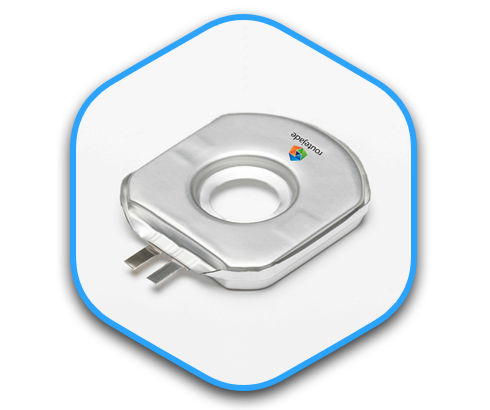

Asymmetric Designed Battery
With battery design which utilizes even asymmetric edge and/or corner, we minimize the dead space and have a superial capacity. We provide the optimized energy solution to our customers.
| Model | Capacity (mAh) |
Voltage (V) |
Weight /Max. |
Dimensions(mm) | ||
|---|---|---|---|---|---|---|
| T | W | L | ||||
| ASDB331426 | 76 | 3.8 | 2.5g | 2.9 | 15.0 | 24.0 |
| ASDB351520 | 91 | 3.83 | 1.9g | 3.4 | 15.5 | 20.0 |
| ASDB371828 | 160 | 3.8 | 3.2g | 3.4 | 18.5 | 28.4 |
| ASDB402334 | 270 | 3.8 | 5.3g | 3.6 | 23.0 | 32.0 |
| ASDB592347 | 670 | 3.8 | 11.6g | 5.9 | 25.0 | 48.0 |

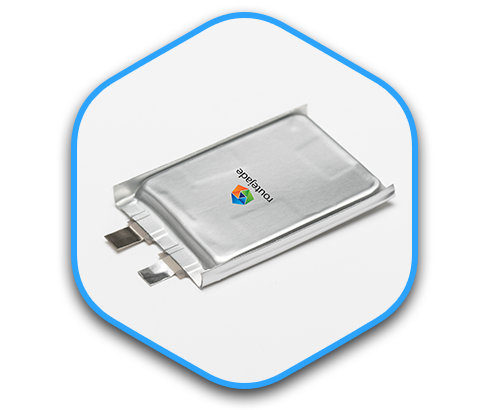

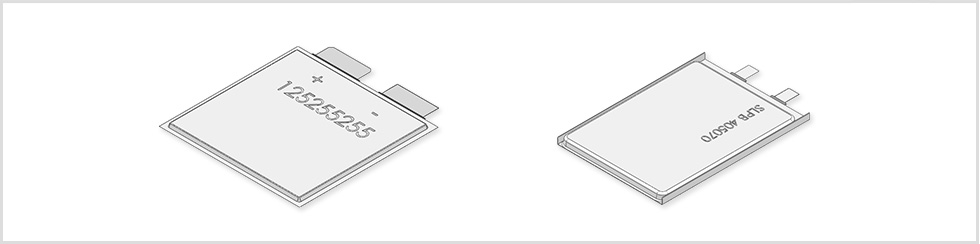

SLPB is a High C-Rate product optimized for high power applications.
Superior Lithium-ion Polymer Battery
SLPB is a High C-Rate product optimized for high power applications. We provide a wide range of options up to 10Ah, and even under 1Ah, with 15~30C. And they have been applied to Medical Device, RC Helicopter, industrial equipment, or anywhere electricity needed around the world.
| Model | Capacity (Ah) |
Voltage (V) |
Weight /Max. |
Dimensions(mm) | Max Discharge Rate(C) |
|||
|---|---|---|---|---|---|---|---|---|
| T | W | L | Continuous | Pulse | ||||
| SLPB483459HP1 | 0.82Ah | 3.68 | 18.5g | 4.8 | 34 | 60 | 15 | 22.5 |
| SLPB593459HP1 | 1.05Ah | 3.68 | 23g | 5.9 | 34 | 60 | 15 | 22.5 |
| SLPB753870HP2 | 1.65Ah | 3.68 | 39g | 7.5 | 38.5 | 73 | 20 | 30 |
| SLPB7543128HP2 | 3.6Ah | 3.68 | 82g | 7.5 | 43 | 128 | 20 | 30 |
| SLPB784374HP1 | 2.2Ah | 3.68 | 48g | 7.8 | 43 | 75 | 15 | 22.5 |
| SLPB11543140HP3 | 5.3Ah | 3.68 | 129g | 11.3 | 43.5 | 140 | 30 | 45 |
| SLPB356495HE | 2.5Ah | 3.68 | 45g | 3.6 | 64 | 95.5 | 2 | 5 |
| SLPB526495HE | 3.7Ah | 3.68 | 65g | 5.2 | 64 | 95.5 | 2 | 5 |
| SLPB796495HE | 5.9Ah | 3.68 | 100g | 7.9 | 64 | 97 | 2 | 5 |
| SLPB70106100HE | 10.0Ah | 3.68 | 165g | 7.1 | 106 | 102 | 2 | 5 |
| SLPB75106100HP | 9.0Ah | 3.68 | 167g | 7.5 | 106 | 102 | 5 | 10 |
| SLPB98106100HE | 12.5Ah | 3.68 | 220g | 9.9 | 106 | 103 | 2 | 5 |
